1. one 20ft container for loading one set machine with manual decoiler;
2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;

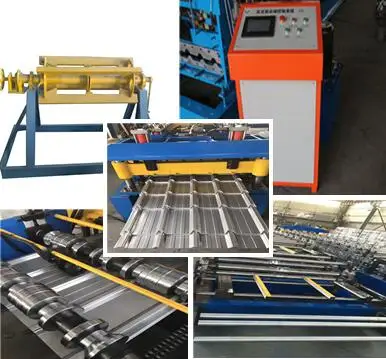

Metal Glazed Tile Roofing Sheet Roll Forming Machine
Usage: It is used to support the steel coil and uncoil it in a turntable way.
Passive uncoil pulled by roll forming system
Coil feeding part
Usage: Put the raw material(steel plate) through the beach to manufacture and process,it can guarantee that the products are neat, parallel and everything is uniformity.Please refer to the equipment regulation to know the function of locate angle iron.
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission, roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working
Feature: Ensure stability, precision and lifetime.
Advanced hydraulic drive, automatic punching and cutting after forming, no distorting or wasting, high level safety factor.
1. Adopted PLC, transducer, touch panel from Delta Taiwan to ensure high speed with stability, precision and lifetime.
2. Other electric element are Delta
3. Equipped with movable switch, air break, radiator, transformer & electric leakage protector for operation convenience and safety.
(Include a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves)
Steel Coil Thickness
up to 1250mm
Gross weight of the coil
Up to 5000 Kg
Main Motor Power
5.5 kw / 7.5Kw
Hydraulic Station Power
Material of Rollers
C45 steel hard chrome plate
Length of Production Line
Diameter of Principal Axis
Material of Blade
Length of Tolerance
up to 1100mm
up to 1250mm
Installation Dimension (L*W*H)
Material of Cutting Blade
Automatic Measuring Device
Tolerance of the cutting
Electrical Control System
Way of Control
PLC Control (Siemens)
Fuji, Mitsubishi, Delta
Low voltage electric device
Applicaion Roofing sheet roll forming machines are extensively used in building steel-structure large-scale warehouses, plants, supermarkets, shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences and different kinds of greenhouses.
Advantages 1. Featuring a wide application range, simple operation, high level of automation and low labor intensity, this machine is very popular among our global customers. 2. A wide range of construction materials machinery is available in our company including the panel machine, steel tile forming machine, and guardrail forming machine etc. 3. Our purlin making machines have been awarded the ISO9001: 2000. Thanks to their high quality, our forming machines are exported to many countries, such as America, Australia, Bulgaria, Argentina, Egypt, Syria, India, and more.
Packaging & Shipping
1. Installation and training of metal glazing roof tile machine: a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face. b.Without visiting, we will send you user manual and video to teach you to install and operate. c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things. 2. After Service of metal glazing roof tile machine a.One year guarantee for whole machine. b.24 hours technical support by email or calling c.If there is any problem found of the metal glazing roof tile machine, we will repair it for free in one year.
1. Do you have after sales support? Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your ma
chines running in order to keep your business running.
2. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pi
ck up you.
3. What can you do if the machine broken?
Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the b
roken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor t
o solve the problems,and we supply the technical support for the whole life of the equipment.
4. Can you be responsible for transport?
Yes,please tell me the destination port or address.we have rich experience in transport.
5. You are trade company or factory?
We are trade company but we also have own factories. Building trade company is just for exporting various types o
f cold roll forming machines.
6. Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and money on developing ho
w to make machines much more automatic, accurate and high quality. We can make sure that our machine could us
e more than 20 years without any problem. We can provide 2 years free qualityassurance.
7. How long the machine could be made?
Normally speaking, welded pipe making machine could be made without 45 working days. If you need machines in
a hurry, we can make it for you less than a month.
