z purlin roll forming machine purlin making machine

FOB Reference Price:Get Latest Price
$8,000.00 - $23,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
z purlin machine
Power(W):
18+5.5KW
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Warranty:
2 Years
Type:
Tile Forming Machine
Production Capacity:
10-12m/min
Certification:
CE ISO
After-sales Service Provided:
Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Food & Beverage Shops, Advertising Company
Condition:
New
Tile Type:
Steel
Use:
purlin
Place of Origin:
Hebei, China
Brand Name:
Zhongtuo
Voltage:
Requirements
Dimension(L*W*H):
7800*1600*1400mm
Weight:
6.5-7 tons
Key Selling Points:
Long Service Life
name:
z purlin machine
material Thickness:
1.0-3.0mm
Coder:
Omron
Drive:
Chain
Terms of payment:
30%T/T ,Balance to be paid before shipping after inspection.
Cutting tolerance:
+/- 1mm
Deliver time:
45 working days.
Raw material:
GI
Feeding width:
750 mm
Supply Ability
Supply Ability:
30 Set/Sets per Month z purlin forming machine
Packaging & Delivery
Packaging Details

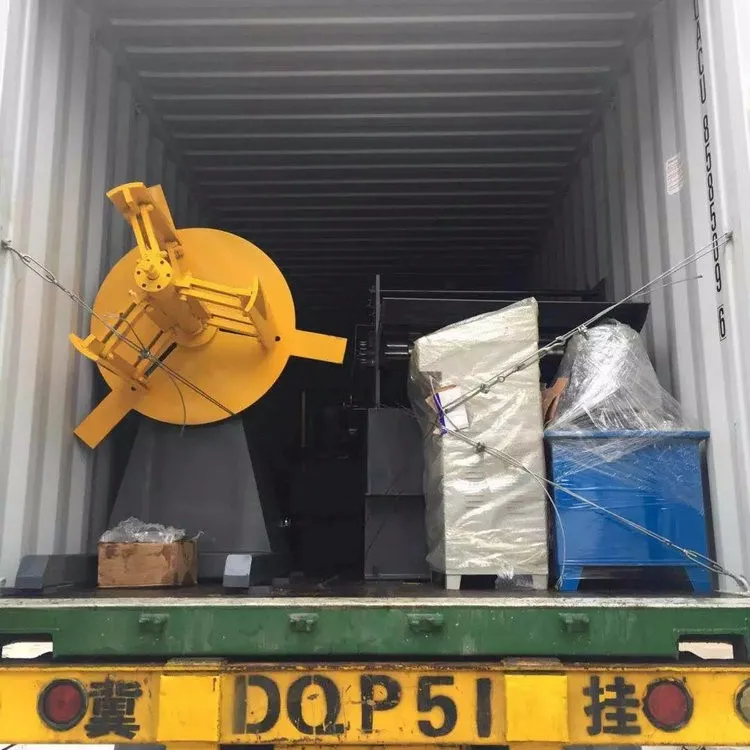

1.One 40ft container for loading one set purlin machine with hydraulic decoiler.
2.The whole wiped anti rust oil ,PLC controller covered by foam film.
3.Spare parts and some small parts packed in plastic tooling box.
4.All components of purlin roll forming machine fixed by steel wire.
Port
XINGANG TIANJIN
Picture Example:
package-img
introduction

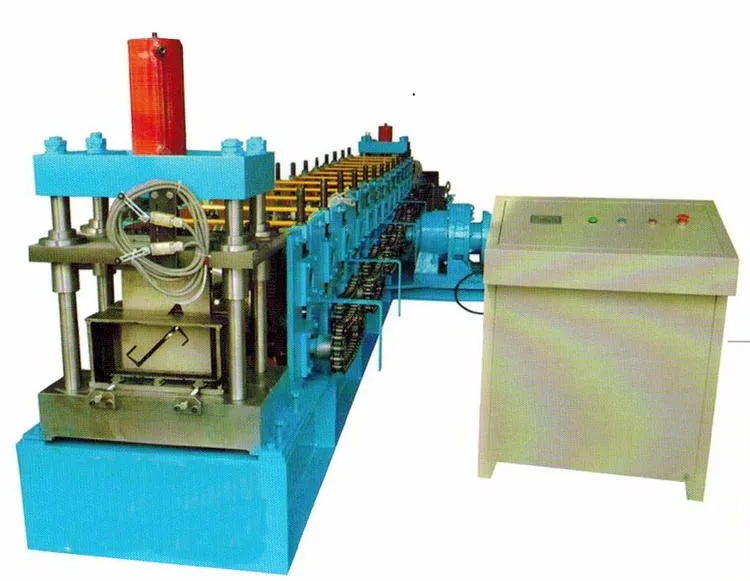

Z Purlin roll forming machine is high effciency and labor cost saving.The most outstanding characteristic of this machine is customers do not need to change blade mould for different dimension ,only changing the quantity of the spacers between two rollers.The whole line includes decoiler from , feeding device, roll forming machine, hydraulic cutting and auto or manual stacker for finished goods.

advantages of Z purlin roll forming machine.

1. The equipment control is PLC control, and multiple safety protections are set up during normal production.

2. The bed is welded steel plate. And for tempering, eliminating internal stress, to avoid deformation of the fuselage.

3. The forming frame is cast iron and tempered. High strength and long service life.

4. The material of the roll shaft is 40Cr, and the hardness is HB280 after quenching and tempering.

5. The material of the forming mold is GCr15, quenched, hardness: HRC56-62°C.

Details

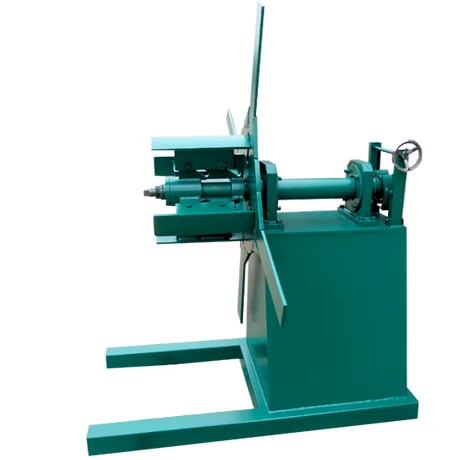

 decoiler

drive: manual

Inner Diameter: 450-550mm

Outer Diametermax 1500mm

Max Coil width: 700mm

Carrying capacity: 3T

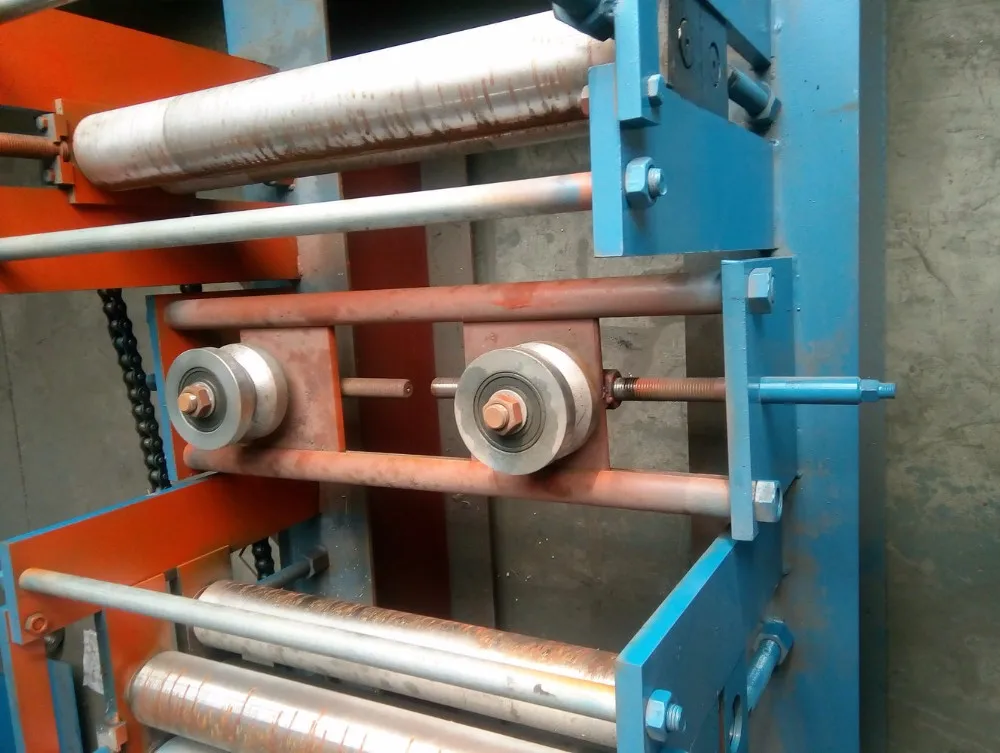

Main Forming  Machine

Forming steps : 16 rollers
Shaft diameter:  80mm
roller material: Gcr15
shaft material:  45# steel
Transport : By chain
Type of cutting and punching:  Hydraulic
Cutting tolerance: ±1mm
Cutter quantity:  2 set

power: 15kw

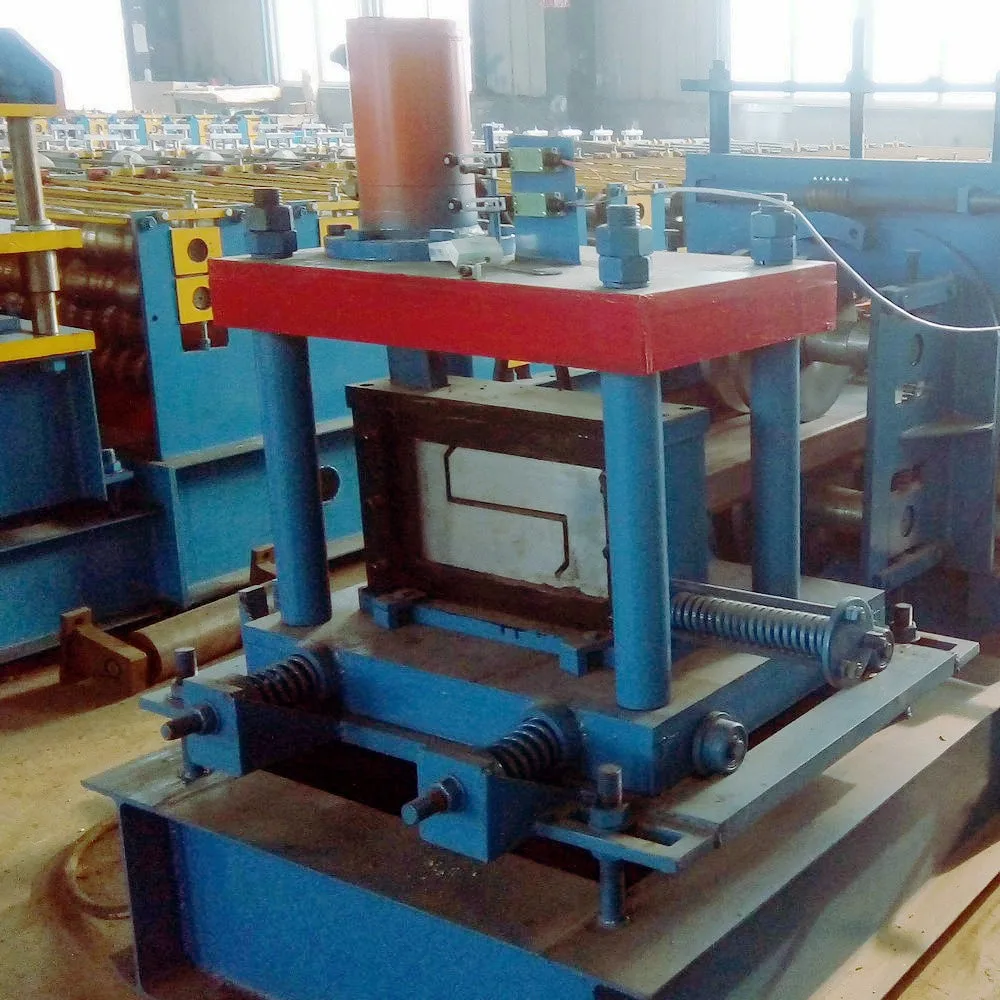

Punching and Shearing machine

Material of blades: Gcr12 quenched
Power supply : hydraulic power
Frame : Pillar style with rack & pinion system
Stroke switch : non-contact photoelectric switch

power :5.5kw

hydraulic station

Hydraulic oil: 46#
Hydraulic power: 3kw
Cutting length : As required
feasure: no distorting or wasting. High level safety factor

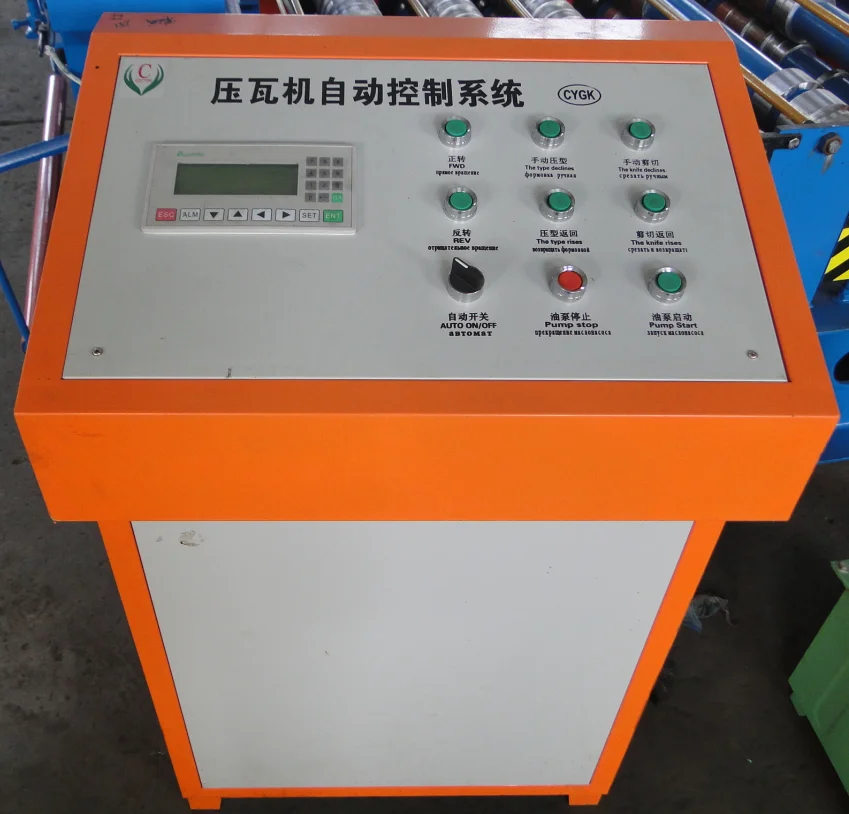

control device


PLC Control : Speed regulation control cabinet
language: As required
Touch screen: Delta
Function: Automatic length and quantity measurement


Packing & Delivery
Packaging



Packaging Details
1.One 20ft container  for loading one set purlin machine with manual decoiler.

2.The whole wiped anti rust oil ,PLC controller covered by foam film.

3.Spare parts and some small parts packed in plastic tooling box.

4.All components of purlin machine fixed by steel wire.
Our Service

training


a.send you user manual and videos.
b.If buyer needs our technicians to go to your factory, the buyer need pay the technician USD80/day for salary .

c.There need one technician. for one week.

After-Sales Service


a.two years guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found in ourmachine, we will repair it for free in one year.
