Automatic garage rolling shutter making machine

FOB Reference Price:Get Latest Price
$10,000.00 - $15,000.00 / Sets | 1 Set/Sets (Min. Order)
Max. Working Width:
DEPENDS
Report Suspicious Activity
Overview
Quick Details
Brand Name:
SDM
Voltage:
220/380/440V
Weight:
2.6 TONS
Certification:
CE
Warranty:
2 Years
After-sales Service Provided:
Field installation, commissioning and training, Video technical support
Production Capacity:
20M/MIN
Power(W):
3000
Applicable Material:
Carbon Steel
Machine name:
new product garage rolling shutter making machine
Roll material:
45# High Grade Steel
Cutting type:
Hydralic Cutting
Control system:
PLC
Cutter Material:
Cr12
hickness:
0.8-1.0mm
Hydraulic oil:
46#
hole punching:
available on machine
Motor brand:
Siemens
decoiler type:
manual
Supply Ability
Supply Ability:
20 Set/Sets per Month rolling shutter making machine
Packaging & Delivery
Packaging Details
1.One 20ft or 40ft container for loading one set machine with manual decoiler.
2.The whole wiped anti rust oil ,PLC controller covered by foam film.
3.Spare parts and some small parts packed in plastic tooling box.
4.All components of rolling shutter slat making machine fixed by steel wire.
Port
XIAMEN PORT,CHINA
Video Description

Automatic garage rolling shutter making machine

 The safety performance of the rolling shutter door is verygood, and it has a very good function of setting up the theft prevention.

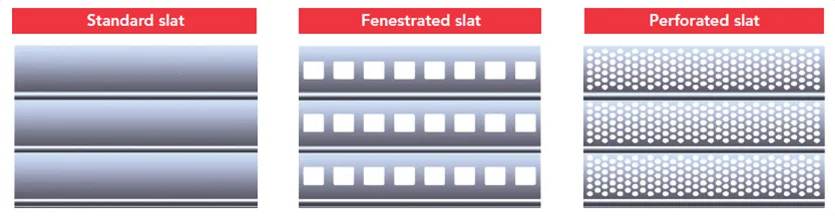

It is widely used in the production enterpriseorin the workshop.There are three types of rolling shutter strip.




1. Specifications of rolling shutter slat making machine

Take the following drawing for example, there are two holes on the shutter slat,

our rolling shutter strip making machine adopts punching two holes and cutting at the same time.



technical parameters of rolling shutter slat making machine

1suitable material  galvanized steel
2product size85 mm (depends on customer's request)
3feeding widthdepends on the product profile
4rolling station14 stations
5diameter of rolling shaft50 mm
6motor power5.5 kw
7PLC brand Delta
8working speed20 m/min
9

cutting length

+/- 1mm
10material of rollerCr12
11main framesteel plate welded
12voltage220/380/440V-50HZ-3Phase
13weight2.2 tons to 4 tons
14cutting wayhydraulic tracking cutting

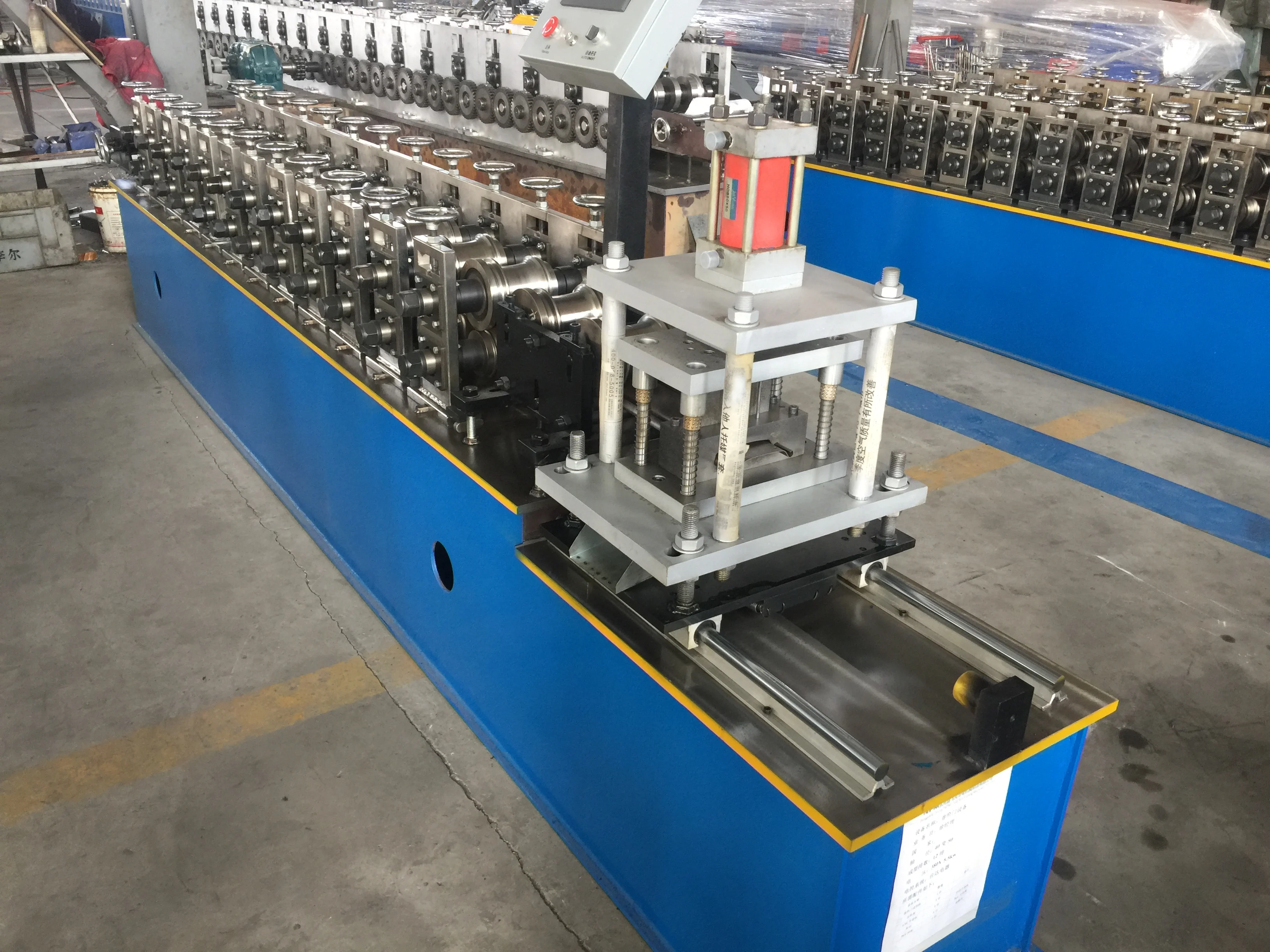

2. Pictures of rolling shutter slat making machine

Compared with the old roll forming machine, our latest rolling shutter slat making machine has many advantages.

(1) We use one-piece frame for the machine body and is easy to realize quick change for rollers for different profiles;

(2) For PLC part, we introduce motion controller to guarantee the high precision and all our motor are changed into Siemens with servo motor;

(3) For transmission part, we adopt gear transmission, ensuring the precision and life span of the machine;

(4) For the cutting part, most of them are hydraulic cutting.







The customer come to check the machine when the machine is ready, we start the machine and produced several pieces which is in different length.

First, we will check the product dimension

Second, will check the product connection

Third, will check the cutting length



3. we also can make the embossing on the product, one more embossing station is available.

Here we recommend some regular types for your reference, also can be customized.





Our Services

1. We can give you the guarantee by money, you can take the machine first without balance and try the quality.

    Meanwhile, can help customer solve the fund issue.



2. Because the machine is customized, the customers will provide us the profile drawing by themselves.

    But some customers don't have such profile drawings, then we can recommend the model types according to the local market standard.



3. We can operate the machine with material before the customer put order if you come to my factory.



4. Both the sale person and technician can give you the service overseas and make training for the workers,

    the sale person can make translation, so that the installtion and training will be more clear and easily.



5. We will prepare some spare parts along with the machine, ensure our customer can solve the issue in a shortest time.



6. The machine will be tested before shipment with coil, ensure everything is ready





7. We will be at your service always, our customres can get in touch with us anytime, even have the time difference.

FAQ



1. How to get a quotation?

 a.Give me the profile drawing and thickness,this is the important.

 b.Other spicific requirements is welcome,such as the speed,power and voltage you want.

c. If you don't have your own profile drawing, we can recommend some model types according to your local market standard.



2. Terms of payment:

30% advance payment first by T/T, Balance will be paid before shipping after inspection.

The balance payment can be paid by LC, and we can accept the full payment by LC also.

Meanwhile, we can ship the machine to you without balance payment.

You can pay us the balance payment till you receive the machine.



3. Are you trade company or factory?

We are the one based on factory and international trade,

we have our own design concept for the machines and have optional solutions for machine concept according the customer's request.



4. What can you do if the machine broken?

Our machine's warranty period is 12months,if the broken parts can't  be repaired,we can send  new to replace for free,but you need to pay the express cost yourself.after warranty period,we can negotiate to solve the problems,

we supply the technical support for the whole life of the equipment.



other products

We are the manufacturer for various cold roll forming machines, here I can show you some model types.

1. Roof profile sheet roll forming machine

    Trapezoidal profile roofing sheet machine

    Corrugated profile roof sheet forming machine

    Glazed tile roofing sheet forming machine

    Double layer roll forming machine



2. Partition and ceiling roll forming machine

    CU channel roll forming machine

    Omega/furring roll forming machine

    Wall angle roll forming machine



3. Floor decking roll forming machine



4. CZ purlin roll forming machine



5. Highway gurdrail roll forming machine



6. Water downspout pipe forming machine



7. Strut channel roll forming machine



8. Upright rack roll forming machine



9. Deformed profile roll forming machine
