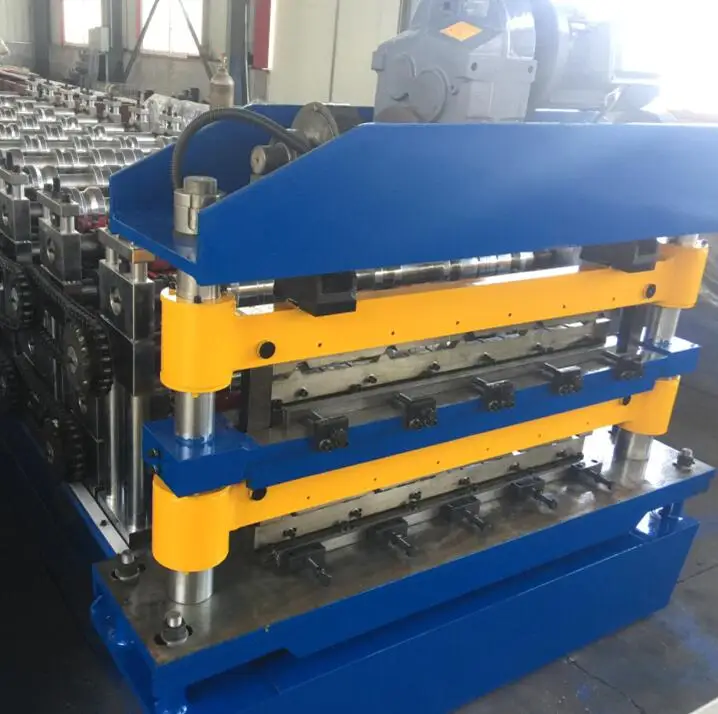

metal roofing galvanized aluminum corrugated steel sheet making machine colored steel wall roof panel cold roll forming machine

FOB Reference Price:Get Latest Price
$7,000.00 - $10,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Product Hightlights
Type Production Capacity Power(W)
Tile Forming Machine 8-25m/min 5.5-11kw
Specifications
Certification:
CE/ISO9001
Condition:
New
Tile Type:
Colored Steel
Use:
Roof
Place of Origin:
Hebei, China (Mainland)
Brand Name:
zhongtuo
Model Number:
zt-12
Voltage:
at buyers option
Dimension(L*W*H):
8500*1650*1500mm
Weight:
5-7.5T
Size of container:
20GP
steel Cutting type:
hydraulic cutting
Roll material:
45# high grade steel
feeding width:
1220mm
Lanugage system:
Chinese ,English
drive mode:
chain
Warranty:
12months, 2 Years
feature:
high speed,low energy consumption
Frame:
450#H steel welded
Material of mold:
Cr12
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
roof panel roll forming machine is nude packing
1. one 20ft container for loading one set machine with manual decoiler; 2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film; 3. Spare parts and some small parts packed in plastic tooling box; 4. All Components Fixed by steel wire with Container.
Port
TIANJIN
Lead Time :
Shipped in 30 days after payment

metal roofing galvanized aluminum corrugated steel sheet making machine

Product Description

Machine description

Quantity

Delivery time

Container type

metal roofing galvanized aluminum corrugated steel sheet making machine



 1SET

45 working days after receiving deposit



 One 20GP

Components of  corrugated iron sheet machinery

No.

Name

Unit

Qty

1

Manual decoiler

set

1

2

Main forming machine

set

1

3

PLC control system

Set

1

4

Hydraulic pump station

set

1

5

post cut

set

1

6

 electric motor

set

1

7

 output table

set

1

  corrugated iron sheet machinery production process

Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→Products receiving

Details of corrugated iron sheet machinery


parameters

NO.

Items



parameters

Remark

1

Suitable Material

type

GI/PPGI/AL







Width

1200mm

Custom





Thickness

0.3-1mm





Product specifications

 length

 any length







 length tolerance

±  2mm



3

Working Speed

8m-25m/min

Standard machine

4

Control System

 PLC

Custom

5

Total Power

 5.5-11 KW



6

Total Weight

About 5-7.5 T

Up to final design



Packaging & Shipping
Packaging Details:1. one 20ft container for loading one set machine with manual decoiler; 2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film; 3. Spare parts and some small parts packed in plastic tooling box; 4. All Components Fixed by steel wire with Container.
Delivery Detail:45 days after receipt of buyer's deposit

Our Services



a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine,and also train your workers/technician face to face.

b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.

2.After Sevice

3.a.One year guarantee for whole machine.

b.24 hours technical support by email or calling

c.If there is any problem found of the machine, we will repair it for free in one year.

Company Information



Cangzhou zhongtuo cold bending roll forming machine co., Ltd is a professional manufacturer and exporter which has its own factory and also cooperate with several production factories and associated nterprises, concerning with the design, development and production of cold roll forming machines,material of building.

It is located in northwest of CangZhou, as a long history of cold roll forming machine production

base. All products comply with international quality standards

and are greatly appreciated in variety of different markets throughout the world, such

as Asia, Africa, Europe,South America, and Australia and so on.







FAQ



1. Does one machine can only produce one style panel profile?

Not exactly.For some  making machine. It can produce more  kinds of panels by change their rollers



2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We

need your machines running in order to keep your business running.



3. How to visit your company?

a.Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can

pick up you.

b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),

then we can pick up you.



4. What can you do if the machine broken?

Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new

parts replace the broken parts freell,but you need pay the express cost yourself.if after

warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.



5. Can you be responsible for transport?

Yes,please tell me the destination port or address.we have rich experience in transport.



6. You are trade company or factory?

We are trade company but we also have own factories. Building trade company is just for exporting

various types of cold roll forming machines.



7. Why your price is higher than others?

As we persist on that each factory should put quality at the first place. We spend time and money

on developing how to make machines much more automatic, accurate and high quality.

We can make sure that our machine could use more than 20 years without any problem. We can provide 2 years free quality assurance



8. How long the machine could be made?

Normally speaking, welded pipe making machine could be made without 45 working days.

If you need machines in a hurry, we can make it for you less than a months.
