NEW Product metal decking roll forming machine Galvanized Steel deck Floor Tile Making Machine

FOB Reference Price:Get Latest Price
$60,000.00 - $70,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Product Hightlights
Type Production Capacity Power(W)
Tile Forming Machine 8-12m/min 2x11KW
Specifications
Certification:
CE
Condition:
New
Tile Type:
Steel
Use:
Roof
Place of Origin:
Hebei, China (Mainland)
Brand Name:
ZHONGTUO
Model Number:
ZT-688
Voltage:
380V
Dimension(L*W*H):
10.2*1.65*1.5
Weight:
6.5T
product name:
Galvanized Steel deck Floor Tile Making Machine
feeding thickness:
1.2-1.5mm
roll shaft:
#45 steel
diameter of axle:
100mm
usage:
PLC control
forming step:
22 stations
maine frame:
Panasonic,Delta, Mitsubishi
forming speed:
10m/min
motor:
22kw
Raw material:
Galvanized Sheet
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
12months
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
Packaging Detail: simple plastic film protection on the Galvanized Steel Floor Tile Making Machine, loaded in container independently
Port
Tianjin
Lead Time :
within 45 working days after received deposit
Video Description

NEW Product metal decking roll forming machine Galvanized Steel deck Floor Tile Making Machine




the finished sheets of Galvanized Steel deck Floor Tile Making Machine will be used for:





the details of steel deck roll forming machine Galvanized Steel deck Floor Tile Making Machine:





all parts with the steel deck roll forming machine Galvanized Steel deck Floor Tile Making Machine:

Roll forming machine1 set
Uncoiler system1 set(Manual, hydraulic decoiler can be provided)
Entry Beach2 set
Mould3 set(Adjustable )
Control Panel2 set
Hydraulic Station1 set
Table2 set(adjustable)
Punching system1 set(Depend on your need)


the parameters of steel deck roll forming machine Galvanized Steel deck Floor Tile Making Machine:



NEW Product! Galvanized Steel Floor Tile Making Machine Made in Cangzhou DescriptionIntroduction
Working efficiency8-12m/min
Thickness of Material1.2-1.5mm(can be changed according to customers need)
Width of materialAccording to customers need
Control systemPLC(The brand can be choose)
Uncoiler system5Ton Manual Operation(1250mm width)
Forming by rolling24 rows(According to the machine design)
Roller materialGCR15 Aluminium processing after quenchin HRC58-62°C,Chrome plated
Shaft and the diameter of axle45#Aluminium-processing ,diameter of axle=100mm
Main part power2*11kw
Hydraulic motor power5.5kw
Hydraulic pressure12Mpa
Scissor materialCr12Mov, herd steel HRC 58-62°C
length tolerance±1.5mm
voltage380V, 50HZ,3 phase(adjustable by customer needs)
Frame formMiddle plate
Driving MethodChain
ColorYellow and blue(adjustable)
Sizelength*Width*Height - 6.8*0.8*1.2m
weightabout 8.5T
PackageNude package in 1*40GP container
Delivery date40 working days
Payment Method30% T/T in advance and balance 70% after inspection confirmation before shipment.
If you have your own drawing, please send it to us, we can design the machine, depend on your drawing.





here are more profile drawings of Galvanized Steel deck Floor Tile Making Machine for reference:

Payment:

Payment:30% T/T in advance, balance 70% after inspection confirmation before shipment.

Delivery: within 45working days after receipt of deposit.



 Warranty:

One year, and we will provide the technical support for the whole life.

Training:

The buyer should charge of visa, return ticket, food and accommodation overseas and USD80/person/day for salary. Training time: one week (contains the time of installation and adjustment)


Company Information

Cangzhou ZHONGTUO Cold Roll Forming Co., Ltd is a professional manufacturer and exporterwhich has

its own factory and also cooperate with several production factories and associated nterprises, concerning with

the design, development and production of cold roll forming machines,material of building. It is located in

northwest of CangZhou, as a long history of cold roll formingmachine production base. All products comply

with international quality standards and are greatlyappreciated in variety of different markets throughout the

world, such as Asia, Africa, Europe,South America, and Australia and so on.





FAQ

Q: Are you manufacturer?
A: Yes, we are manufacturer of this metal decking roll forming machine Galvanized Steel deck Floor Tile Making Machine

Q: What kind of payment term you can do?

A: We are flexible about payment terms, please contact us for details.

Q: What info you need before you make the proposal for decking roll forming machine Galvanized Steel deck Floor Tile Making Machine?
A: The profile drawings, material informations, your special requirements.

Q: What I should do if I just start to know roll forming machinery?
A: Contact us immediately, we provide free consultant pre-sales service.

Q: How to visit our company:
A: 1.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.

    2.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
    3. Fly to Guangzhou aiport: By air From Guangzhou to Beijing airtpot; By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.

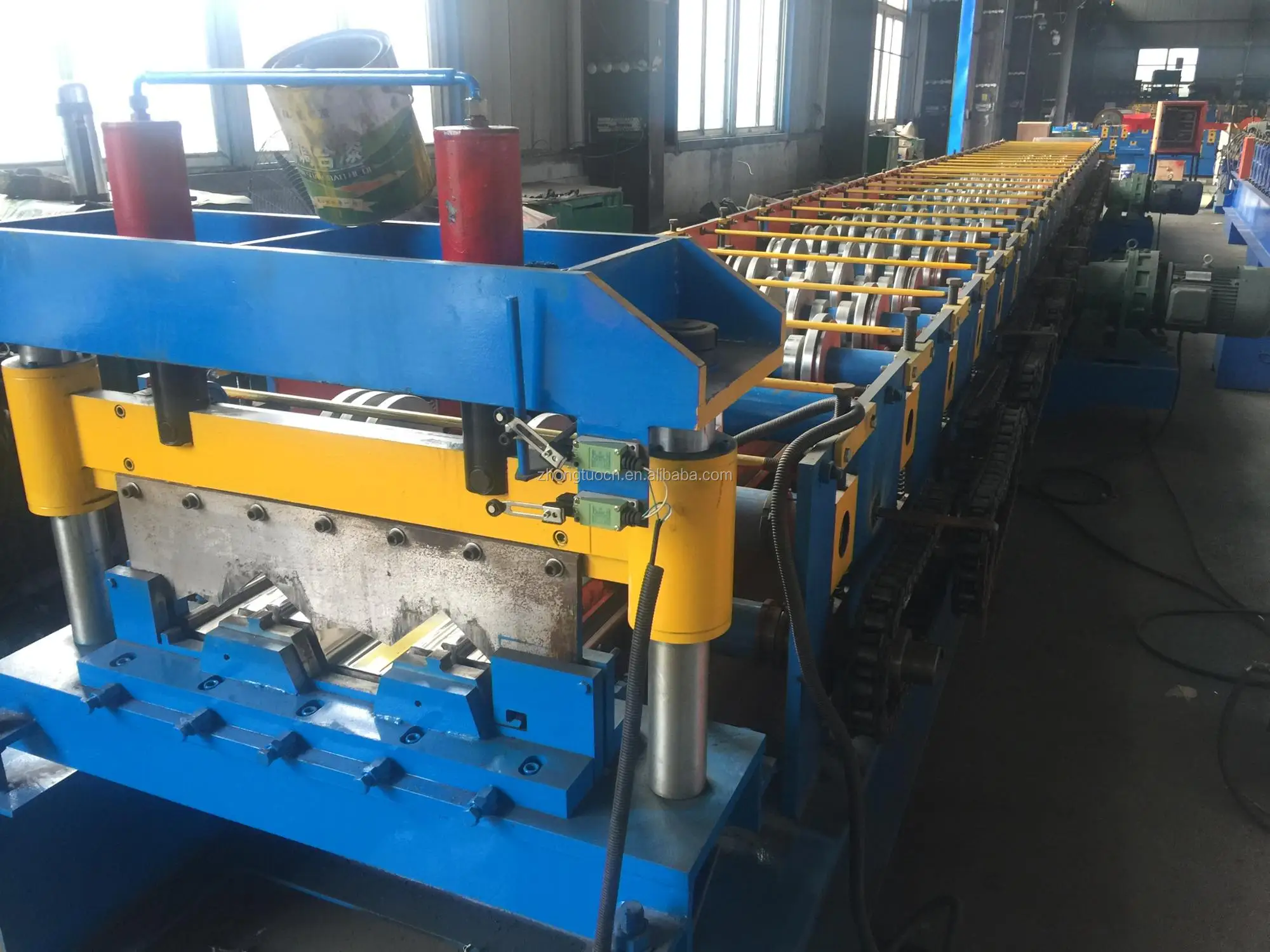

here are more photos of our machine for your reference:

if you have any need on machines, just contact me:
